Lindsay Engraving Stand with Built in Turntable
Use this stand with a low profile
turntable vise.
(Thanks to Ray Cover for ideas for this
stand.)
Features: 10" diameter smooth turntable, ridged steel
construction, adjustable height from 24" to 36".
Price $449, plus $55 flat shipping & handling
within USA.

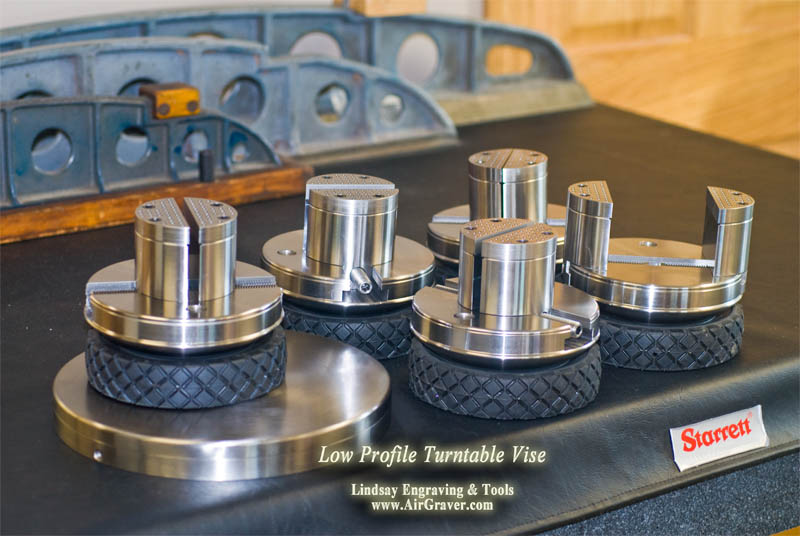

Low Profile Turntable Vise
(Turntable and vise sold seperatly)
(Turntable and vise sold seperatly)
Low Profile Turntable Vise Features
**Threaded holes in base jaws for custom
fixtures and homemade jaws.
**Includes pin plates, base and wrench.
**Diameter 6" (same diameter as Goliath
vise)
**Jaw width 3"
**Maximum jaw opening 3.375".
Wider objects can be held using pin plates (5.5") or by making
homemade jaws (wood, plastic, or metal) as needed and using supplied
screws to hold them on.
**Overall height 4.5"
**Jaw height 1.75"
**Weight 15.5 lbs.
Benefits to low profile
**The low profile allows tilting of the block without the viewing
location moving away from the field of view in a microscope. It stays centered,
in a manner similar to the larger Glide-Lock vise and the Dovetail
low profile vise.
**
The vise has no bearings. It untilizes the bearings of a
turntable. The absence of bearings in the vise allows a lower
profile which provides greater rigidty.
**The
lower center of gravity provides stability so that the vise is less
likely than a high profile vise to fall over when titled.
Low Profile Turntable Vise
Price $349 plus $30 shipping within USA
(Price does not include a turntable)

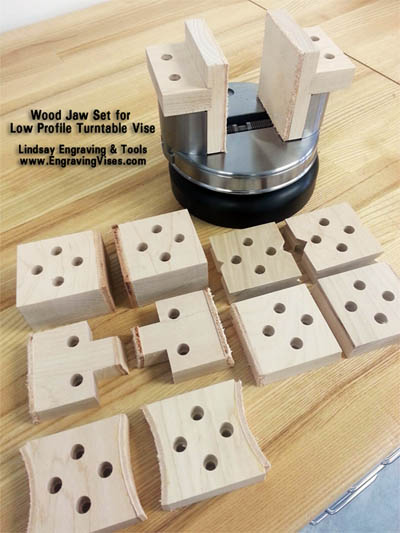

Wood Jaw Set for Low Profile Turntable Vise
These Maple wood various shaped soft jaws fit on the
Low Profiles, later Goliaths,
and Mammoth Vises. Some are leather faced. The jaws are
multi-faced so that they can be rotated 180 degrees or in the case of
the ones with four mounting holes rotated every 90 degrees. Six
sets of jaws with 19 sets of faces.
Wood Jaw Set for Low Profile Turntable Vise
$129
|
A: Adjustable centers for Low
Profiles, later Goliaths, and Mammoth Vises.
B: Adjustable centers for
clamping in any vise.
C: Universal screw plates for Low
Profile, later Goliath, and Mammoth Vises. Includes
nylon standoffs and screws shown.
|
Thank
Ray Cover for ideas and help making these accessories
happen.
Vise
Holder Accessories
$229
 |
Multi-Coin Vise
Thead on the Engraving forum
about the Coin Holder:
https://engravingforum.com/showthread.php?t=10942
The Mulit-Coin vise holds some 61
different coins. Made with US denominations in mind,
those measurements happen to
accommodate
a wide variety of coins
from many countries.
Click here for the list of 61 coins.
|
Multi-Coin Vise
Holds Eight Coins
with Two Sets of Reversible Jaws Nickel, Quarter, Cent, Dime,
Half Dollar Silver Eagle, Morgan Dollar, Native American Clamp
block on bottom for mounting in a larger engraving vise.
Multi-Coin Vise
$249
|

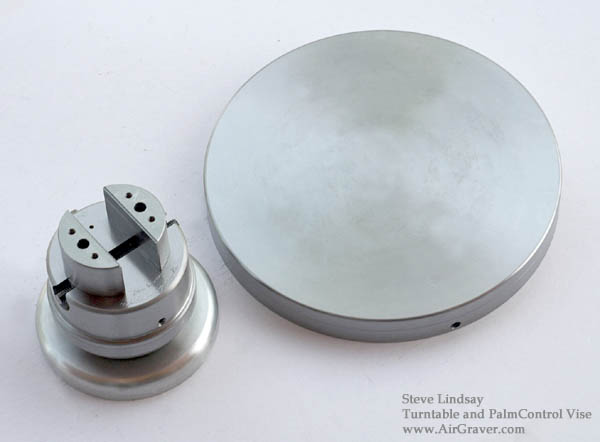

Lindsay Turntable - 10"diameter,
25lbs.
Above photo of a Lindsay Turntable with a 4" PalmControl vise that is
available lower down on this page.
Lindsay Turntable
(does not include vise)
10" diameter steel turntable
Adjustable
Friction Brake
1 - 1/8" thick
Weight 25 lbs
Price $429
The Lindsay Turntable has been built with large ball bearings and a
larger diameter race to increase stability without wobble.
However, if at this time you cannot justify the price of my
turntable, Engraver Ray Cover discovered more cost effective
solution: a Shimpo turntable that can be found on pottery making
craft sites. At the bottom of the page of
this link, is

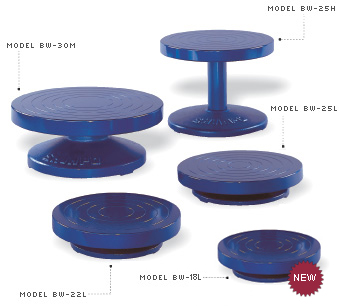

the "Shimpo" turntables list of banding wheels. The one to get is
model BW-25L. It is 9.875" in diameter x 2.25" high and at
$68.88 (at the time of writing) it's hard not to recommend it for
beginners or anyone with a tight budget. I noticed a little
wobble in the one I tested, but it wasn't bad.
How to center a turntable under
a microscope
Place your vise on top and approximately in the center of the
turntable under your microscope. Adjust the distance/focus on your
microscope until your project, or the jaws of the vise are in
focus. Next, spin the turntable while looking through the microscope.
To center, while spinning the turntable, look into the scope and push
the whole turntable and/or your scope around until the view seen in
the scope is spinning right in the middle of the field of view.
From here, leave the position of the scope and postion of the
turntable alone. To get to another location on the item
being engraved in the field of view, simply push the vise around on
top of the turntable.
This process is the same for the Glidelock vise, even though the
turntable is built into the vise.
|

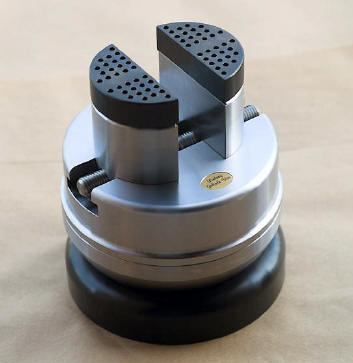

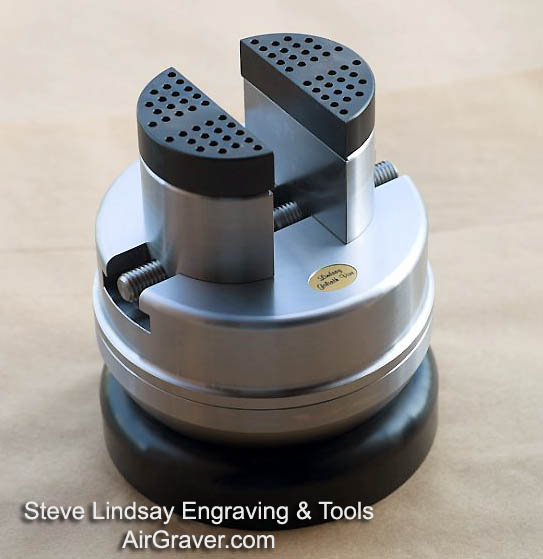

Goliath Engraving Block
The Goliath Engraving Vise is a medium profile block, providing transition benefits between a high profile and a low profile block.
Benefits to a medium profile vise
**Can be tilted over farther than a low profile.
**When viewing under a microscope, a medium profile designed
vise allows one to tilt the block without the viewing location moving as far away as it does with a high profile.
**Lower center of gravity provides stability so that the
vise does not tend to fall over as easily as a high profile vise when titled.
Goliath Vise Features
**6" Diameter.
**2.5" high vise jaws with pin plate (1.75 without)
**Adjustable friction drag
**Precision machined and precision fit jaws
**High quality surface finishes
**Machined sphere mating base
**Includes pin plates, base and wrench.
**Three holes in jaws accept pin vise or custom fixtures
**Height from base to top of jaws 6"
**Jaw width 3"
**Maximum jaw opening 3.50"
**Weight 30 lbs.
Goliath Engraving Vise
$629
temporarily out of stock
Goliath Engraving Vise with Leather ring fixture
$665
temporarily out of stock

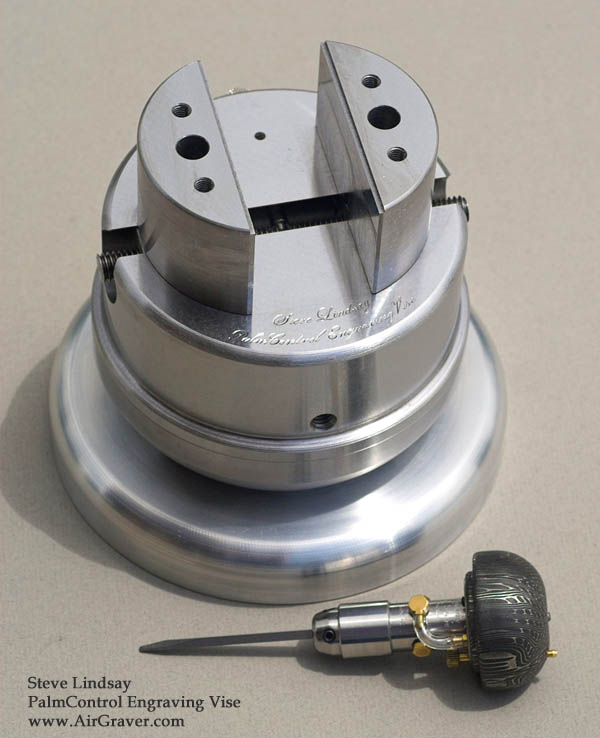

PalmControlŽ
Vise
PalmControl AirGraver not included.

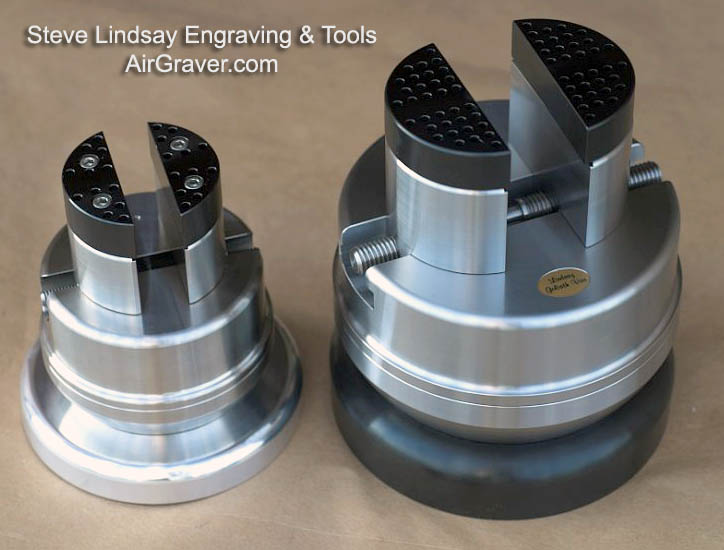

Above: PalmControl vise pictured with a Goliath vise for size comparison.
PalmControl Vise
**4" Diameter
**Has a detent feature of engaging and
disengaging jaw screw retainer
**303 stainless steel
**2" high vise jaws (with pin plate)
**Adjustable friction drag
**Precision machined and precision fit jaws
**High quality surface finishes
**Machined sphere mating base
**Includes pin plates, base and wrench.
**Threaded holes in jaws accept pin plates or custom fixtures
(more information on engraving forum)
**Height from base to top of jaws (without pin
plates) 4.5"
**Jaw width 1.75"
**Maximum
jaw opening 2.4"
**Weight 12 lbs.
PalmControl Vise: Price $454

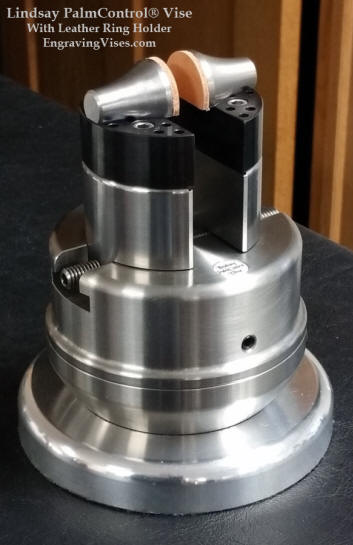

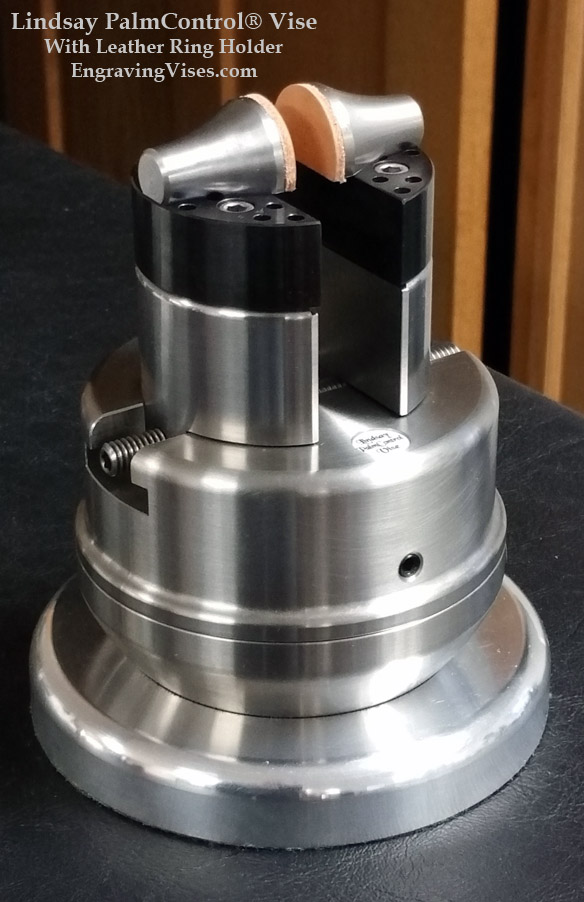

PalmControl Vise with Leather ring fixture: Price $490
Lindsay
Heavy Duty Turntable
(PalmControl Vise in photo for size comparison.
The vise is not included in price. )
Lindsay Turntable
Specifications:
10" diameter steel turntable
Friction brake
1 1/8" thick
Weight 25 lbs
Price $429
Leather Ring Fixture for Vise pin plates
Place these in vise pin plates to hold rings or other items.
Leather Ring Holder Price $56
|
